Vertical Axis Wind Generators On Grid Wind Turbine With CE Certificated
The brief introduction of wind power grid-tied system:
Wind power grid-tie system is a semi-autonomous electrical generation or grid energy storage system which links to the mains to feed excess capacity generated by wind turbine back to the local main electrical grid. When insufficient electricity is generated, electricity drawn from the mains grid can make up the shortfall.
Residences and businesses that have a wind power grid-tie system permitted in many countries to sell their energy to the utility grid. Electricity delivered to the grid can be compensated in either net metering or feed-in-tariff, HYE wind power grid-tie system offers complete system solutions for both compensation ways.
HYGCI series wind power grid-tie inverter is the core part of the whole system, the inverter is developed specially for HY series wind turbine according to HY series wind turbine special features with an optimized power curve pre-written into inverter and smart over-voltage braking protection, which offers a reliable combination of high efficiency, easy-installation, high wind protection and grid-failure protection.
The 1.5kw on-grid inverter specification:
| Model |
HYGCI-15CL-V1.5 |
| Matching wind turbine |
HY-1500L |
| |
Manual Brake |
| Rated Current |
32A |
| Rated Voltage |
400VAC |
| |
Brake Unit |
| DC output voltage range |
0-350V |
| AC input voltage |
0-230V |
| AC max. current |
30A |
| |
Power |
| Rated output |
1500W |
| Peak output |
1600W(adjusted) |
| |
DC voltage input |
| Working voltage |
40Vdc~450Vdc |
| On-grid voltage |
70Vdc~350Vdc |
| Max. input current(dc) |
8A |
| |
AC output |
| AC output voltage |
220V/230V/240V(1ψ2W) |
| Output frequency |
50 Hz / 60Hz |
| Output standard option |
CE-EMC, CE-LVD, VDE 0126-,1-1 VDE-AR-N 4105 |
| Power factor |
>0.99 @ full load |
| Max. conversion efficiency |
＞95% |
| |
Environment requirement |
| Protection grade |
IP20 |
| Ambient temperature |
-20℃~ 60℃ |
| Humidity |
≤90% |
Maintenance:
The HYGCI-15GL is designed for a minimum amount of maintenance.
We recommend checking the following functions at regular intervals in order to ensure a proper operation of the device:
< Check on a regular basis, preferably weekly, whether the device operates properly. This should be done at different wind conditions. You can recognize the proper operation by means of the displayed operating modes. Serious errors are displayed by the red LED.
< Pollution of the heat sink can restrict the heat dissipation. Check the heat sink for dirt on a regular basis and clean it with a paintbrush, a soft brush or compressed air.
< Clean the display and the LED display with a moist cloth when it is dirty. Do not use harsh cleaning agents (e.g. abrasive), solvent or acid substances!
Product Tags:
|
|

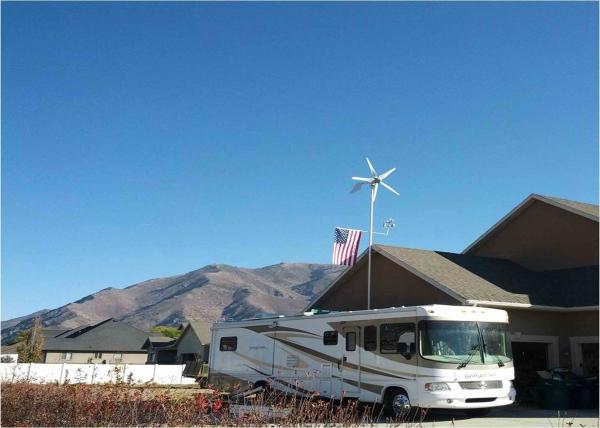

Horizontal Axis 1.5KW Wind Turbine On Grid System For Home Used Images
|
