600W 48V RS232 Syetem Wind Solar Hybrid Street Light Controller
- Optional Remote Communication Function:
The software can monitor real-time system running status, which contain all the parameters on the LCD screen. Through the software, users can not only set and adjust relevant parameters, but also can control the wind turbine and load running status, and alarm while malfunction happens.
- Optional Low Voltage Charge Function:
Boost module is added in the controller to help wind turbine charge battery banks even in low wind or the wind turbine rotates in low speed. User can adjust the admittance value and start charge voltage via software according to different wind turbine parameters.
- Optional By-pass Function:
When the battery is under voltage, the controller will automatically switch to the utility grid to get power for driving load to ensure the continuity of the system.
- Optional Temperature Compensation Function:
The controller can adjust the dumpload voltage according to different ambient temperature so that the battery charge is in the best efficiency.
Brief of wind turbine:
| Model | HY-WSC06-48AWMR |
| Rated Battery Voltage | 48V |
| Rated Wind Turbine Input Power | 600W |
| Maximum Wind Turbine Input Power | 900W |
| Rated Solar Input Power | 300W |
| Charge Shutoff Voltage | 58V |
| Wind Turbine Brake Current | 13A |
| Battery Over Discharge Protection Voltage | 43.2V |
| Battery Over Discharge Recovery Voltage | 48V |
| Output Over Voltage Protection Value | 64V |
| Light Control On Voltage (Factory Default ) | 4V【Adjustable】 |
| Light Control Off Voltage (Factory Default) | 6V【Adjustable】 |
| Rated Output Current of Load 1 and 2 | 10A |
| Load 1 Output Control Mode (Factory Default) | 3 Modes Selection (Light Control On and Light Control Off) |
| Load 2 Output Control Mode (Factory Default) | 3 Modes Selection (Light Control On and Time Control 5 Hours Off) |
| Display Mode | LCD |
| Quiescent Current | ≤20mA |
| Ambient Temperature & Humidity Range | -20～+55℃/35～85%RH(Without Condensation) |
| Communication Function (Optional) | RS232 ,RS485, RJ45, GPRS (Optional) |
| Temperature Compensation Function(Optional) | -4mV/℃/2V ,–35℃～+80℃ , Precision:±1℃ |
| By-pass Function(Optional) | Auto Switch |
| Dimensions (L x W x H) | 205×150×82mm |
| Net Weight | 2.2KG |
FAQ
Q: Is HY Energy a manufacturer or a trading company?

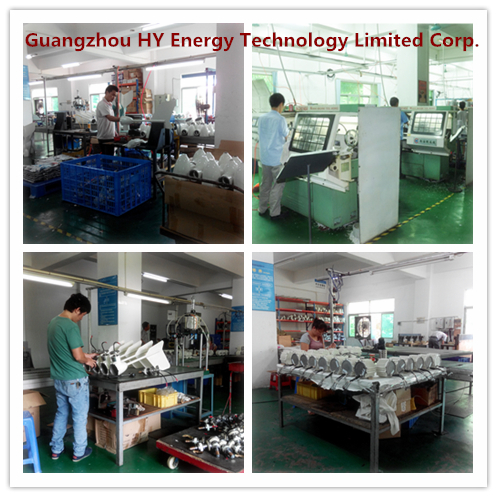

A: HY Energy is a high-tech manufacturer focused on design, production and application of high performance and reliable small wind turbine products from 2001.
Q: Why choose a horizontal wind turbine?
A: The advantage of horizontal wind is that it is able to produce more electricity from a given amount of wind. So if you are trying to produce as much wind as possible at all times, horizontal axis is likely the choice for you.
Q: Do I have enough wind?
A: You can find out from Gaisma.com, HYE wind turbine start up wind speed is 2m/s.
Q: What is the difference between on-grid and off-grid turbines? How do I know which one is right for me?
A: If your home currently gets its energy from a utility company, you will need an on-grid turbine, which helps decrease your monthly utility bill by generating energy your home draws on before it turns to your utility company for energy. If you currently don't have the option of buying energy from a utility company, you have what is known as an off-grid need. Homeowners with off-grid needs often create what is known as a hybrid system, which employs both wind energy and energy generated by solar photovoltaic cells to keep their batteries charged.
