400w 600w 1000w Wind Solar Street Light System For Commercial Area Lighting

The major advantage of wind solar hybrid street light system:

The major advantage of wind solar hybrid street lighting system is that when solar and wind power productions are used together, the reliability of the system is enhanced. Additionally, the size of battery storage can be reduced slightly as there is less reliance on

one method of power production. Often, when there is no sun, there is plenty of wind. Wind speeds are often low in periods (noon time & summer) when the sun resources are at their best. On the other hand, the wind is often stronger in periods (evening time & spring, winter) when there are less sun resources. Even during the same day, in many regions worldwide or in some periods of the year, there are different and opposite patterns in terms of wind and solar resources. And those different patterns can make the wind solar hybrid systems the best option for street lighting.

Specification of HY-1000 wind turbine:

Model HY-1000

Rated Output 1000W

Peak Output 1200W

Rated Voltage(V) Grid-off DC24/48 or grid-tie DC48/110

Start-up Speed 2 m/s or 4.5mph

Cut-in Speed 2.5m/s or 5.6mph

Rated Wind speed 12m/s or 26.8mph

System average Cp. >0.36

Rate Charging Current (A) DC41.7/20.8

Noise level <30dB (@50 feet distance from hub center)

KWH/month (monthly avg. V 5.5m) Approx. 175

Working Temp. range from -40°C to 60°C

Survival Max. wind 50m/s or 110mph

Overspeed control Electromagnetic brake & blade aerodynamic speed control

Number of Blades 5

Rotor Diameter(m) 196

Swept Area (m2) 3

Blade Material Strengthened nylon glass-fiber

Generator Type Brushless 3-phase PMA with high performance Neodymium Magnets

Tower-top Weight 28kg

Tower Type self-supporting, guyed, Tilt-up tower or rooftop mounting etc.

Controller Type MPPT or PWM

Applications solar & wind hybrid lighting, on/off-grid power system etc.

Product Life (years) 15

Warranty (years) 3 years (optional 5 years)

Years on Market 5

Unit Sold Worldwide >12,000 sets

Certificate Certified by ISO9001:2000, CE, RoHS, ETL

Optional Accessories lightning rod & shock absorber

HY Energy wind turbine features:

• CE certified for "Small Wind Turbine with High Reliability".
• 5 blade designed for low wind area, light breeze start up
• Amazingly quiet operation with minimal vibration.
• Long lifetime, free of maintenance
• Fully automatic with blade aerodynamic braking and controller electromagnetic braking.
• High efficiency is achieved by matching design of the generator and blades perfectly.
• Patented Blades with twisted aerodynamic design made with strengthened Nylon-fiberglass material
• Anti-rust & anti-corrosion
• Light weight, easy installation, no welding needed. Pole connector provided with bolt-on clamp or flange

Applications:

• City main road lighting
• Military lighting
• highway lighting
• Gate lighting

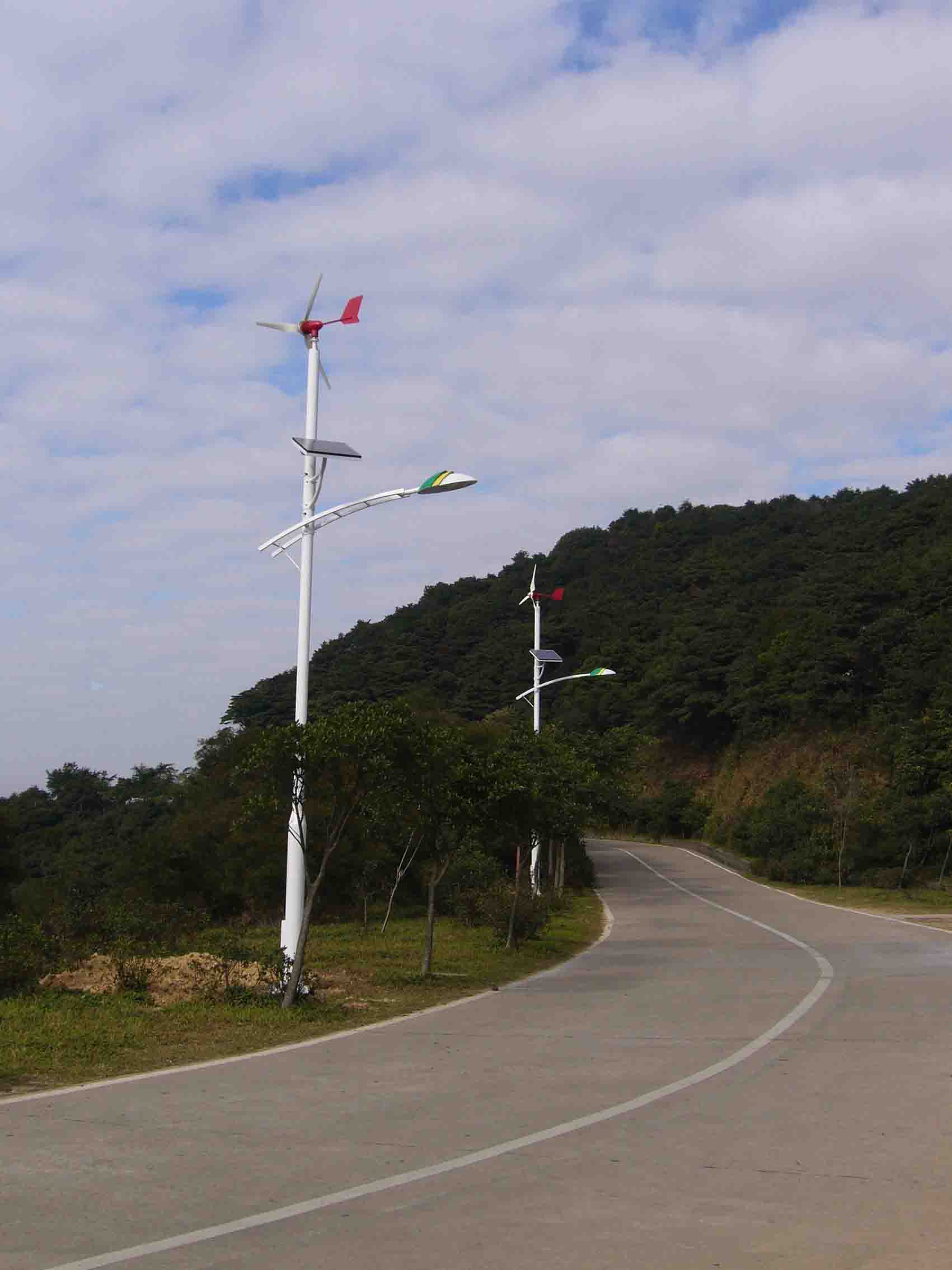

wind solar hybrid street light

solar and wind powered street lights
