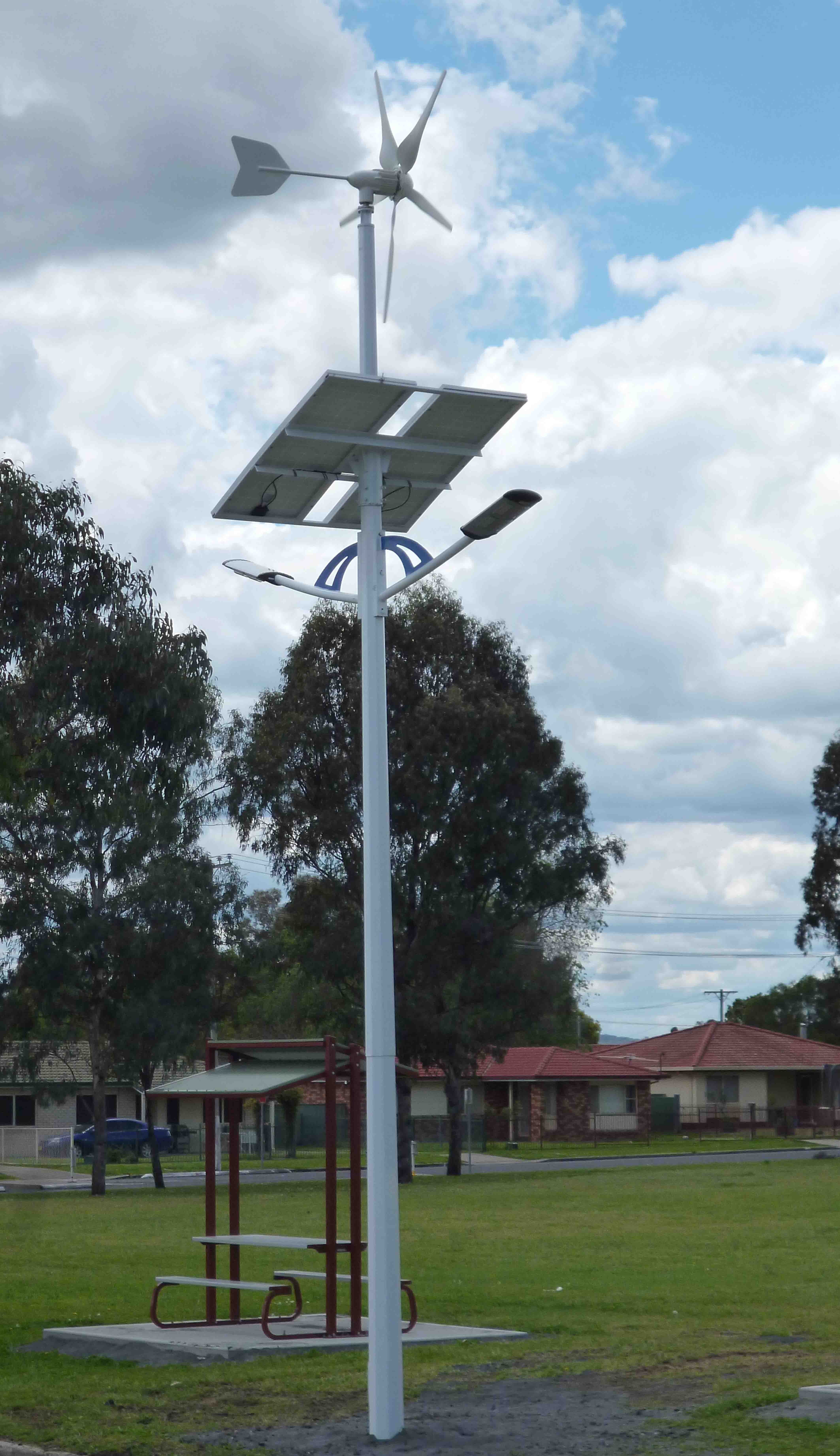

High Power 120w Led Wind Solar Light System With Horizontal Wind Generator
Wind Solar Hybrid Street Light System Includes:
- Photovoltaic (PV) module – 2pcs 140w solar panel
- HY Series small wind turbine: HY-600 24v
- Light source – DC 24V120W LED lamp
- Controller – 5/10/15A wind solar hybrid controller, automatic light controller, automatic operation, multi work mode, over charge
- protection, high wind protection etc.
- Energy Storage – sealed maintenance free AGM gel deep cycled battery
- Battery Box – water proof design battery box
- Light Pole – 6/8/10/12/16m light pole with 30/50m/s wind resistance
Specification of HY-600 wind turbine:
Model HY-600
Rated Output 600W
Peak Output 750W
Rated Voltage Grid-off DC24/48V or grid-tie DC48 V
Start-up Wind Speed 2 m/s or 4.5mph
Cut-in Wind Speed 2.5m/s or 5.6mph
Rated Wind speed 12m/s or 26.8mph
Working Temp. range from -40°C to 60°C
Survival Max. wind 50m/s or 110mph
Over speed control Electromagnetic & blade aerodynamic braking
Number of Blades 5
Rotor Diameter 1.75m
Swept Area (m2) 2.4㎡
Blade Material Nylon fiberglass reinforced composite
Generator Type Brushless 3-phase PMA with high performance Neodymium Magnets
Tower-top Weight 25kg
Tower Type self-supporting, guyed, Tilt-up tower or rooftop mounting etc.
Controller Type PWM
Applications solar & wind hybrid lighting, on/off-grid power system etc.
Product Life 15 years
Warranty 3 years (optional 5 years)
Years on Market 7 years
Certificate CE, RoHS, ISO9001:2008, ISO14001
Measurement 125*52*25cm
Gross Weight 28kgs
Advantages Compared with Solar Street Lighting:
Wider applicable areas – hybrid system offers a much better reliability and sustainability to areas with less solar radiation level, long rainy season or long winter.
Longer battery life – normally wind turbine generates more power during night, part of power generated will supply the light directly, part of power could charge the battery during night, so less charging and discharging loss from battery and also each battery charging cycle is prolonged.
More cost-effective in windy areas – in the area with annual wind speed of 5-7m/s, wind solar hybrid system could have higher production to power higher capacity LED lights or more lights which could lower the system overall cost.
Easier installation & Maintenance – solar street light system cannot put bigger (max. 360W in two sections) PV panels on light pole considering wind load; wind solar hybrid system allows bigger capacity installed on light pole, which could generate enough electricity to power 2-4 LED lights, which means one power system supply for 2-4 lights, it will be easy for installation and maintenance.
Applications:
- City main road lighting
- Military lighting
- highway lighting
- Gate lighting
