Residential Rooftop Wind Turbine , 600 Watt Windmill Electricity For Home

CE , RoHs , ETL Certified Horizontal Wind Turbine 600Watt Power For Resident Rural Area

1. Brief Introduction

We are manufacturer of wind turbine generator, we have our R&D team, advanced manufacturing and testing facilities for small wind turbine generator, now our small wind turbine generators are hot selling, covering small wind turbine generator 400W to 3000W.

HYE owns 35 patent designs on wind turbine blade, slip ring, rotor structure, over-speed control system etc. Each and every component of HYE wind turbine is independently designed and manufactured in house. HYE factory owns advanced wind turbine quality testing equipments and a strict quality control system, all products will go through 22 quality control processes all in HYE factory facility. All products has certificated with CE, RoHS, ETL.

2. Features

1. 2m/s start up wind speed with low torque starting technique applied.
2. True symmetrical and balanced design of blades: The blade casted into molding at one time with balance up to 99%.
3. Light aluminum alloy body of generators (only 25kg for 600W) make the installation easier at lower cost.
4. The turbine tail and yawing part (nylon fiberglass materials with high strength) processed with reinforced ribs, enhance the reliability and can withstand the typhoon.
5. Electromagnetic and blade aerodynamic braking for over-speed control to protect the turbine
6. Matching design of the generator and blades achieves high efficiency.
7. No welding needed, easy installation. Standard Schedule pipe pole of Pole connector.
8. Maintenance free design of the reliable two-moving-parts, no problematic furling.
9. ISO certification of “Design, Development and Manufacture of Small Wind Turbines”
10. Little vibration results in amazing quiet operation.

3. Applications

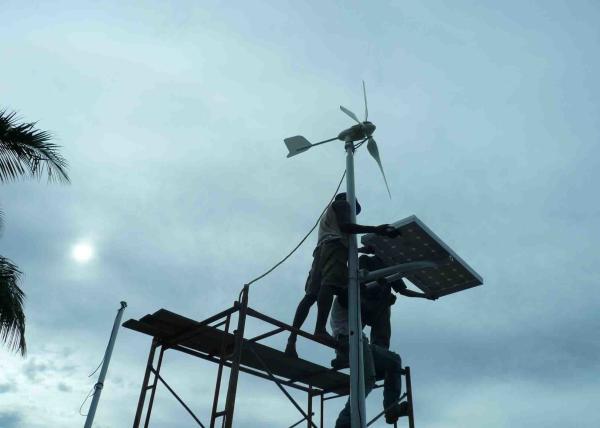

The 600W Horizontal Wind Turbine 5 Blades With Aerodynamic Braking suitable for residential and commercial applications both for off grid and on grid power systems. The small wind power generator could be combined to use with solar panels for a hybrid power supply system via a smart hybrid controller, which is very suitable for remote, seaside home, cabin, sailboats, island, village, remote monitoring, offshore platforms, Eco resorts, landscape, street lighting and school education applications. The unit is very durable and reliable.

4. Specifications

Model HY-600

Rated Output 600W

Peak Output 750W

Controller Output Voltage(V) DC 24/48

Start-up Speed 2m/s or 4.5mph

Cut-in Speed 2.5m/s or 5.6mph

Rated Rotor Speed(RPM) 750

Rated Wind Speed(m/s) 12m/s or 26.8mph

System average Cp. ≥0.36

Rated Charging Current(A) 25/12.5

Noise Level ＜20dB (5m behind turbine @ 5m/s gusting)

KWH/month(monthly avg.V=5,5m/s) 91

Working Tem. Range ℃ From -40℃ to 60℃

Survival Max. Wind 50m/s or 110mph

Over-speed control Electromagnetic & blade aerodynamic braking

Number of Blades 5

Rotor Diameter(m) 1.75

Swept Area(m²) 2.4

Blade Material Reinforced glass-fiber nylon

Generator Type Brushless 3-phase PMA(Neodymium Magnet)

Generator Material Aluminum alloy body &stainless steel rotor

Net Weight 25 KG

Tower Connection Flange connection or bolt-on clamp

Warranty(years) 3

Certificate ISO 9001:2008,CE,RoHS,ETL
