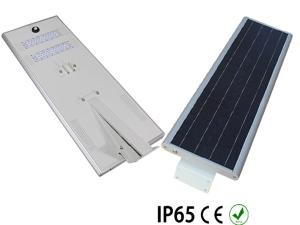

60W Lamp Light 70W Mono Solar Panel With Lithium Battery All In One Solar Street Light
Working Principle:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED light will work at night automatically by light sensor control, and provide light for darkness area, and the human intelligence induction system can save energy when the lighting is too strong.
Features:
l Solar Panel: High efficiency mono-crystalline panel
l Led Lamp: 10-100W high lumen , chip from USA
l Battery Type: High capacity lithium battery
l Controller: intelligent R&D of CSS
l Work Temp: -30℃ ~+60℃
Warranty
2 years product warranty
Configurations Model: HY-WS660
| Solar Panel |
Max Power |
18V70W Mono-crystalline Solar Cell |
| Life Time |
25 years |
| Battery |
Type |
Lithium Battery (LiFe PO4) 12.8V36AH |
| Life Time |
5 Years |
|
LED Street Light Head
(PIR Sensor Control)
|
Max Power |
30W |
| Lumen(LM) |
5380-5550LM |
| Life Time |
50000 Hours |
| Beam Angle |
120° * 60° |
| Charge Time |
By Sun |
7 Hours (With enough intensity sunshine) |
| Discharge Time |
Full Power |
More than 16hours |
| Saving Mode |
More than 40hours |
| Working Temperature |
Range(℃) |
-30℃~+60℃ |
| Color Temperature |
Range (K) |
5500-6500K |
| Mounting Height |
Range(M) |
7-8M |
| Poles Distance |
Range(M) |
22-24M |
| Product size &Weight |
1114*420*148 mm/20.5KGS |
Remarks:
A. All in one solar street light can not work without sunshine charging, please select the suitable product model according to the local sunshine radiation and the annual total radiation;
B. All in one solar light adopts the long life lithium battery for storing energy, charging temperature at day time is between:-30℃-+60℃, when the temperature goes lower than -35℃, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than -35℃. Discharging temperature at night is between:-30℃-+60℃, any ambient beyond will bring damage to the battery. Please confirm your local extreme temperature is suitable for above while selecting the street light.
C. Battery of the “All in one solar street light” can be stored for 1 year long after full charged, and please examine, charge it periodically after long time transportation to prevent damage.
D. While installed in Northern Hemisphere, please make sure the surface of the solar panel to be facing the south to solar panel to be facing the North to collect maximum sunshine radiation. At the same time please keep it away from any shadow of house , trees etc.
E. Keep clearing the surface of the all in one solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.
